trimmer of hair dye tubes making machine

Product Description

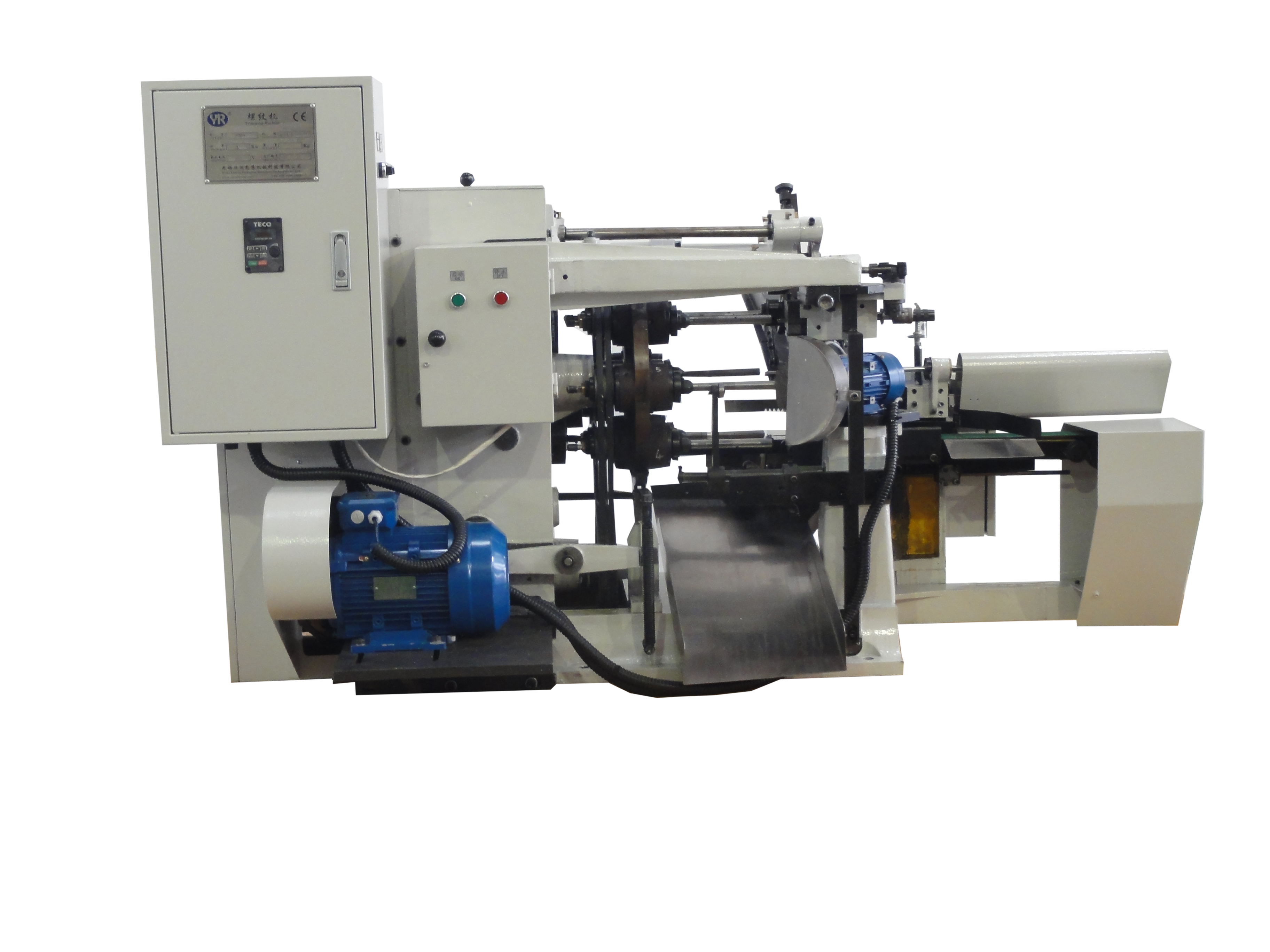

LWD01 is the aluminum tube thread and length trimming machine. It is the specialized equipment of the aluminum tube production line. It is the necessary part of metal collapsible tube line for consumer goods and medicine products. It can work alone or form a production line by connecting with other machines.

The main working procedures include trimming the tube nozzle, processing nozzle thread, polishing tube shoulder and length trimming to required length.

Germ tubes from charging conduit are pushed and inserted over mandrel, the expand mandrel expand to fasten the tubes on the mandrel, and revolves at high speed with the tubes. During the procedure, the tube end is trimmed by the knife to the required length. The tube nozzle is trimmed and form thread formed with chaser rolls,as per specifications. Next, the brush driven by motor polishes the head and shoulder of the tubes and the body of tubes is made smooth and straight, which is helpful for unloading tubes.

The last working station is for unloading materials. The unloading board controlled by cam pushes the processed tubes out from the mandrel. Following the flat belt, the tubes come to the charging conduit which can connect with conveyor chain of annealing oven.

1. Who are we?

We are based in Jiangsu, China, start from 2020,sell to Southeast Asia(35.00%),Mid East(20.00%),South Asia(20.00%),Domestic Market(10.00%),Africa(5.00%),Central America(5.00%),North America(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3. What can you buy from us?

Automatic Aluminum Tube Line,Trimming Machine,Horizontal Extrusion Machine,Printing Machine,Capping machine

4. Why should you buy from us not from other suppliers?

1. Core staff have worked in this industry for more than 15 years on average.

2. More than 10 R & D personnel.

3. More than 10 senior engineers.

4. Door-to-door service team.

5. 7*24 online after-sales team.

6. Sufficient spare parts, fast delivery.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXWï¼›

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,L/C;

Language Spoken:English,Chinese

Our Advantages

ï7*24 Online Service

ïPrice Advantage

ïProfessional Technical Team

ïSufficient Spare Parts

ï1 year Warranty Period

ïOverseas Installation & Training

ïConvenient Transportation

ïCost Analysis
