Wuxi Yingrun Machinery Technology Co., Ltd. is located in beautiful Wuxi, China, only 150 kilometers away from Shanghai.

The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.

LWD01 is the aluminum tube thread and length trimming machine. It is the specialized equipment of the aluminum tube production line. It is the necessary part of metal collapsible tube line for consumer goods and medicine products. It can work alone or form a production line by connecting with other machines.

The main working procedures include trimming the tube nozzle, processing nozzle thread, polishing tube shoulder and length trimming to required length.

Germ tubes from charging conduit are pushed and inserted over mandrel, the expand mandrel expand to fasten the tubes on the mandrel, and revolves at high speed with the tubes. During the procedure, the tube end is trimmed by the knife to the required length. The tube nozzle is trimmed and form thread formed with chaser rolls,as per specifications. Next, the brush driven by motor polishes the head and shoulder of the tubes and the body of tubes is made smooth and straight, which is helpful for unloading tubes.

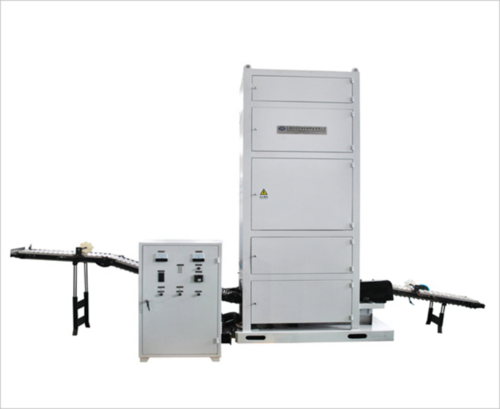

The last working station is for unloading materials. The unloading board controlled by cam pushes the processed tubes out from the mandrel. Following the flat belt, the tubes come to the charging conduit which can connect with conveyor chain of annealing oven.

Our Advantages

†7*24 Online Service

†Price Advantage

†Professional Technical Team

†Sufficient Spare Parts

†1 year Warranty Period

†Overseas Installation & Training

†Convenient Transportation

†Cost Analysis
